Iris Coupled X-band Waveguide Bandpass Filter

Passband: 8.03-8.4GHz

Rejection @ 7.86 GHz ,8.63 GHz > 40dB

Return Loss>20dB

Insertion loss<1dB

Interface: WR112

Filter Structure

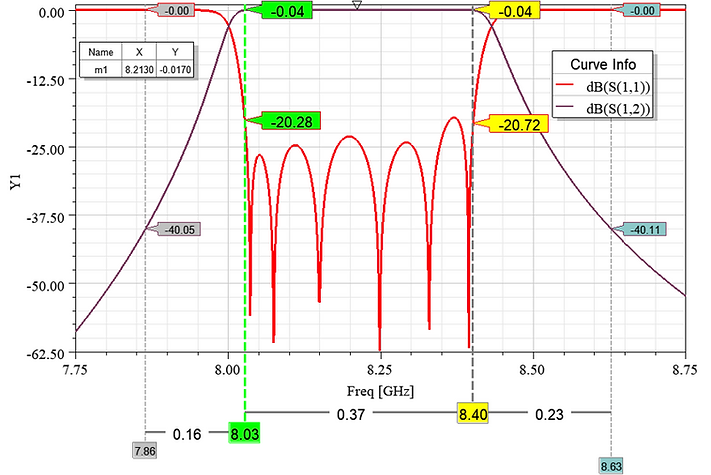

Full-wave Simulation Results
