Metal Based Vivaldi Antenna & Antenna Array
Vivaldi antennas are wide-band antennas with excellent stable radiation patterns over wide frequency range and its based on metal make these very low loss. A wide band tightly coupled (WBTC) compact array of such antennas results in high gain, narrow beamwidth radiation pattern and can be used in all applications such as in detection of RF hidden devices, aerial /space borne radar detectors / locators (commonly known as ELINT systems), wide-band communication systems and can augment as spectrum sensor array as well.
Manufactured 1 x 10 Vivaldi Antenna Array
Metallic Vivaldi Antenna
S-Parameters [Magnitude]
S1,1
S11 of Metallic Vivaldi Antenna

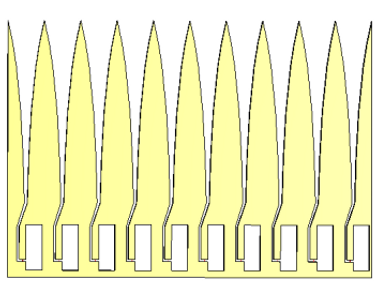

Final design of 1x10 vivaldi Antenna Array
VSWR [Real Part]
VSWR2

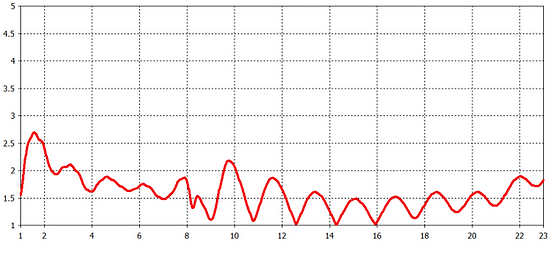

Active VSWR of 2nd element of 1x10 vivaldi Antenna Array
3D Radiation pattern of Array at 4 GHz
farfield(f=4) [2[1,0]+3[1,0]...6[1,0]+7[1,0]+8[1,0]+9[1,0]]
Type: Farfield
Approximation: Enabled (kR >> 1)
Component: Abs
Output: Directivity
Frequency: 4GHz
Radiation Efficiency: -0.03412 dB
Total Efficiency: -0.3187 dB
Directivity: 8.610dBi
​
3D Radiation pattern of Array at 4GHz
dBi
Farfeild Directivity Abs (Theeta = 90)
farfield(f=4) [uniform dis...
Frequency: 4 GHz
Main lobe magnitude: 8.13 dBi
Main lobe direction: 90.0 deg.
Angular width (3dB): 39.4 deg.
Side lobe level: -14.5 dB​
Phi/Degree

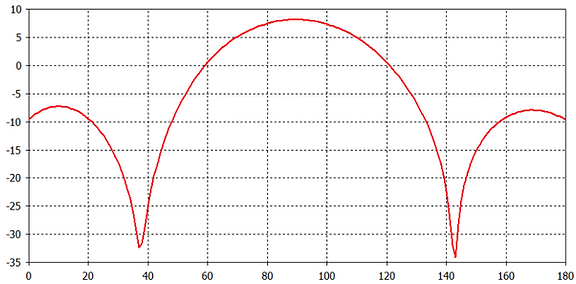

Radiation pattern of Array at 4GHz in E-plane
farfield(f=4) [2[1,0]+3,...
Frequency: 4 GHz
Main lobe magnitude: 8.61 dBi
Main lobe direction: 125.0 deg.
Angular width (3dB): 138.0 deg.​
dBi
Farfeild Directivity Abs (Phi = 90)
Theeta/Degree
Radiation pattern of Array at 4GHz H-plane
3D Radiation pattern of Array at 8 GHz
farfield(f=8) [2[1,0]+3[1,0]...6[1,0]+7[1,0]+8[1,0]+9[1,0]]
Type: Farfield
Approximation: Enabled (kR >> 1)
Component: Abs
Output: Directivity
Frequency: 4GHz
Radiation Efficiency: -0.04695 dB
Total Efficiency: -0.2156 dB
Directivity: 12.0dBi
​
3D Radiation pattern of Array at 8GHz
Farfeild Directivity Abs (Theeta = 90)
dBi
farfield(f=8) [uniform dis...
Frequency: 8 GHz
Main lobe magnitude: 11.5 dBi
Main lobe direction: 91.0 deg.
Angular width (3dB): 19.1 deg.
Side lobe level: -13.4 dB​
Phi/Degree
Radiation pattern of Array at 8GHz in E-plane
Farfeild Directivity Abs (Phi = 90)
farfield(f=8) [2[1,0]+3,...
Frequency: 8 GHz
Main lobe magnitude: 12 dBi
Main lobe direction: 117.0 deg.
Angular width (3dB): 101.9 deg.​
Side lobe level: -6.4 dB
Theeta/Degree

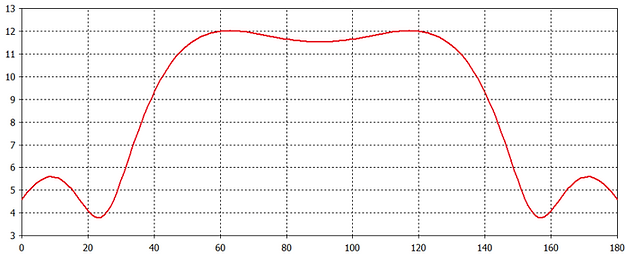

Radiation pattern of Array at 8GHz H-plane
3D Radiation pattern of Array at 12 GHz
Farfeild Directivity Abs (Theeta = 90)
dBi
dBi
farfield(f=12) [uniform dis...
Frequency: 12 GHz
Main lobe magnitude: 15.1 dBi
Main lobe direction: 90.0 deg.
Angular width (3dB): 12.9 deg.
Side lobe level: -13.3 dB​
Phi/Degree

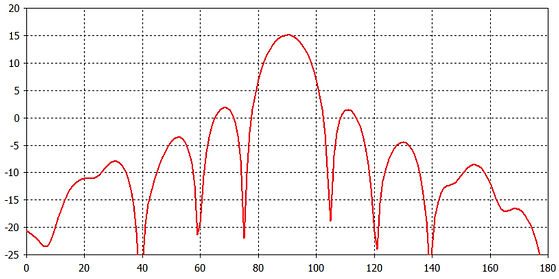

Radiation pattern of Array at 12 GHz in E-plane
Farfeild Directivity Abs (Phi = 90)
farfield(f=12) [2[1,0]+3,...
Frequency: 12 GHz
Main lobe magnitude: 15.1 dBi
Main lobe direction: 82.2 deg.
Angular width (3dB): 64.5 deg.​
Side lobe level: -8.4 dB
Theeta/Degree

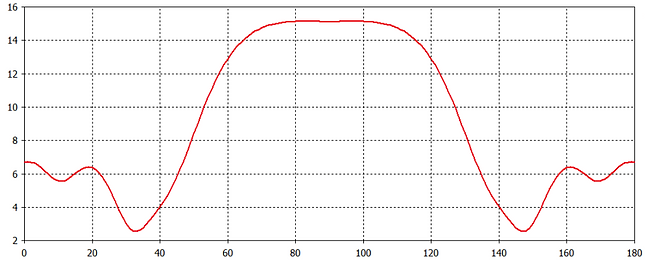

Radiation pattern of Array at 12 GHz H-plane
dBi
dBi
